MXM Tech Specs...

 GPS: Integrated (10 Hz Single Frequency)
 Inertial Sensor: Included

 Sensor Inputs: 4 (0-5V)

 Digital Outputs: 2 (15A)

 Speed Inputs: 2

 Harness Inputs: 37 pin Autosport/4 pin DTM
 Wi-Fi Connection: Included
 Display Resolution: 268 X 128 Pixels
 Integrated Backlight: Yes
 Configurable RGB Backlight: Yes (Seven Colors)
 Ambient Light Sensor: Yes
 Multifunction Shift Light Array: Yes (Five RGB LED Lights)
 Alarm Lights: Yes (Two Configurable)
 Adjustable Sampling Frequency: Yes
 Housing: Fiberglass Reinforced Nylon
 Pushbuttons: Yes (Aluminum)
 Memory: 4 GB

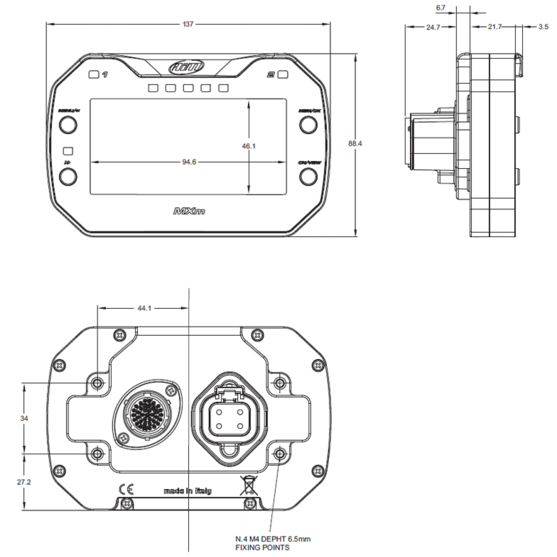

 Dimensions: 5.40" X 3.50" X 1.20" Inches
 Weight: 11.75 Ounces
 Environmental: IP65 (Water and Dust Rating)

​​​​In case you need it...


User manual

​Race Studio 3 software

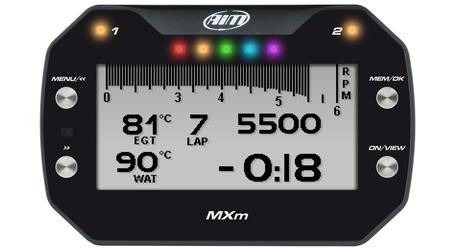

MXM System

Designed for Sprint Cars & Midgets

The MXM is a data logging system that allows you to connect a variety of sensors to it, including RPM, an IR lap receiver (not included), and temperature/pressure sensors. Plus, it connects to your car's ECU!!!

The MXM has a square-wave/variable Voltage RPM input, four 0-5V sensor inputs (for temperature/pressure sensors), two CAN inputs (ECU connections and expansion), Wi-Fi for downloading and transmitting, alarm LED lights, a shift light array, integrated GPS (10Hz sampling frequency) for lap timing, speed, track mapping and driven-line plotting, and an integrated three axis accelerometer/gyro/magnetometer for calculating acceleration.

Did we mention that the MXM has an RGB backlight that is auto-sensing (it turns itself on and off, depending on the ambient light conditions)? Well, it does...and it it is your tuning-tool for midgets, sprints, and more. The system also offers two digital outputs for activating external shift lights, triggering a relay, or...whatever.  ​
